Tracker

Tracker is a video-based measurement program for physics lessons and experiments. Students can load footage of a moving object, set a scale, and mark its location over successive frames. Teachers can use the resulting measurements to discuss trajectories, speed, and acceleration, or to compare a classroom recording with predictions from a mathematical model.

Turn a clip of moving objects into measured positions and graphs that can be checked against a physics model.

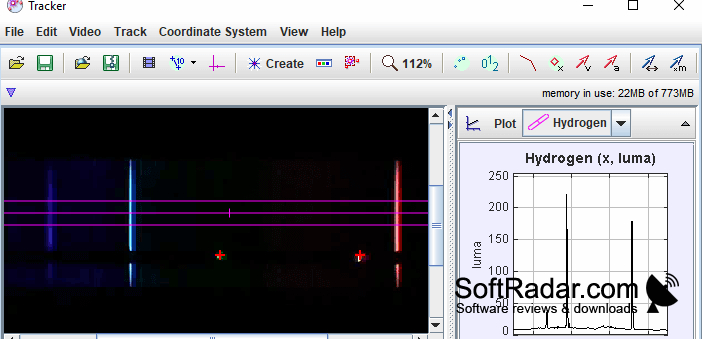

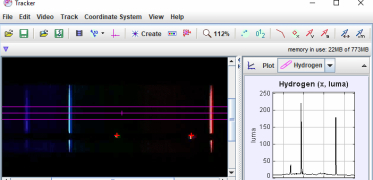

Tracking can be done by hand or through automatic point detection. The program plots measurements, fits curves, and places motion indicators over the footage. Users can adjust axes and units, measure lengths and angles, correct perspective or lens effects, and build models of moving bodies. Results can be copied or saved as text, while edited videos can be exported with or without visual annotations.

Features:

• Manual and automatic position tracking
• Speed and acceleration indicators on video
• Measurement graphs with curve fitting
• Adjustable axes, scales, and units
• Perspective and lens correction filters
• Text data and edited video export
